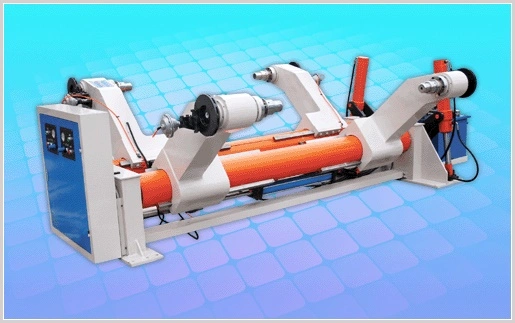

Auto Splicer, with Hydraulic Shaftless Mill Roll Stand, for 2-ply Corrugated Cardboard Production Line
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Size: | According To Customer Request |
|---|

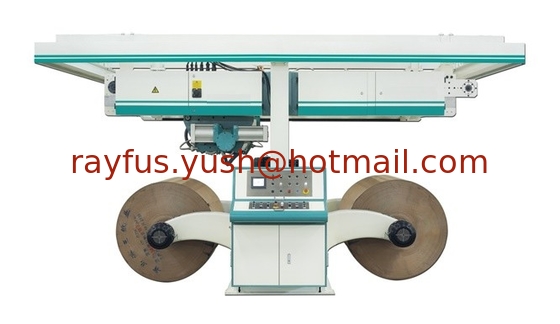

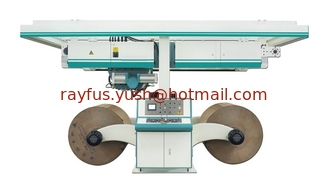

Auto Splicer
Features:
Improving the efficiency of mill roll and mill roll can be fully used up
Zero tail splicing, the sticking area is quite small which can reduce the consumption
Non-stop slicing which can increase the working efficicency dramatically
Automatic tension control which indicates the advantages of easy operation and humanization
Simple and quick through structure which indicates the advantages of easy operation and humanization
Special design flatenning technology which can eliminate the wrinkle phenomenon dramatically
PLC control with high automation integrated level
Technical parameters:
The maximum width: 1600,1800,,2200,2500mm
The maximum splicing speed: 140-220m/min (based on the paper quality)
The maximum diameter of mill roll: 1500mm
Suitable paper: 90~440g/m2
The minimum strength of extension: 3 N/mm (based on the paper quality and its tension level)
Tension control range: 5~100kg

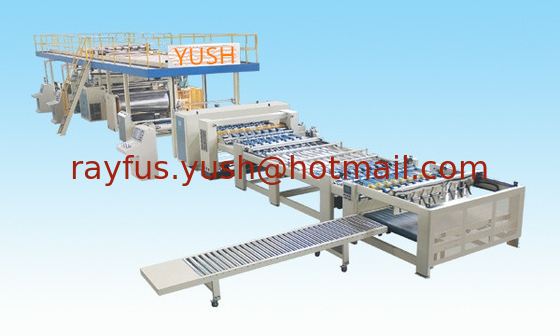

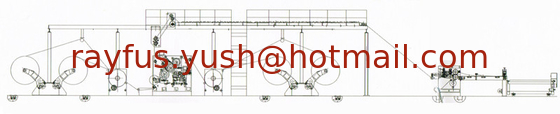

DW-150 Single Facer Corrugation Line

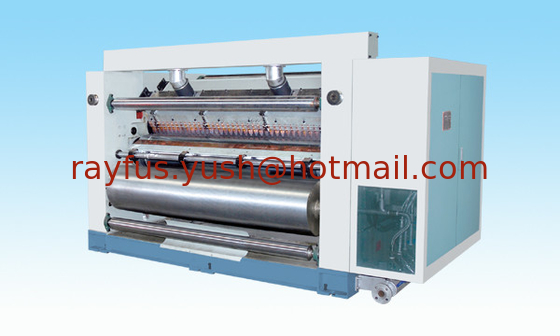

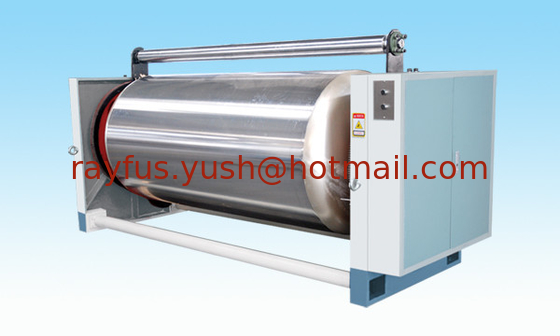

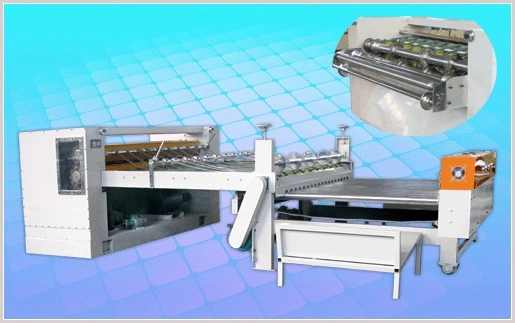

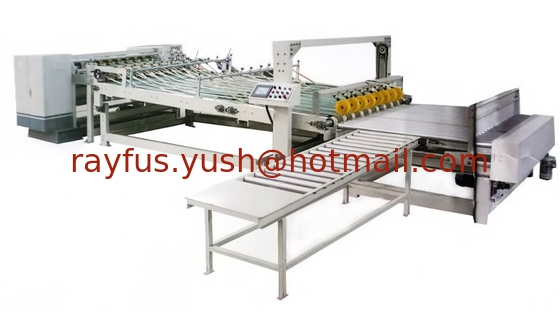

1) This product line consists of Hydraulic Shaftless Mill Roll Stand, Auto Splicer, Preheater, SF-320C Fingerless type Single Facer, NC Single Faced Slitter Cutter Stacker, Steam Boiler & Pipeline(customer-owned parts), etc.
2) Kraft Paper Reel to corrugate and glue by Corn Starch Gum, continuously produce and cut to Single Faced Corrugated Cardboard Sheet, and then through Flute Laminator Machine or Sheet Pasting Machine to laminate to 3/5-ply corrugated sheet, press and fix.
3) The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. Good work conditions.
4) It is the ideal and perfect equipment for small or medium carton factories.
| Max Effective Width | 1100~2200mm |
| Max Paper Roll Diameter | 1500mm |
| Max Paper Roll Weight | 3000kg |
| Corrugating Roller | Φ320mm, 48CrMo alloy steel, hardness HRC58°-60° |
| Cutting Length | 300~9999mm |
| Cutting Precision | ±1mm |
| Design Speed | 150m/min | |
| Heating Method | Steam Heating | |
| Economic Working Speed | 100~120m/min | |
