Roll Pressing Granulator, for Fertilizer Powder to Pellet making machine
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Automatic Grade: | Automatic | Voltage: | 220v/380v/440v |
|---|---|---|---|
| Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Driven Type: | Electric | Certification: | CE |
| Color: | Customized Color |

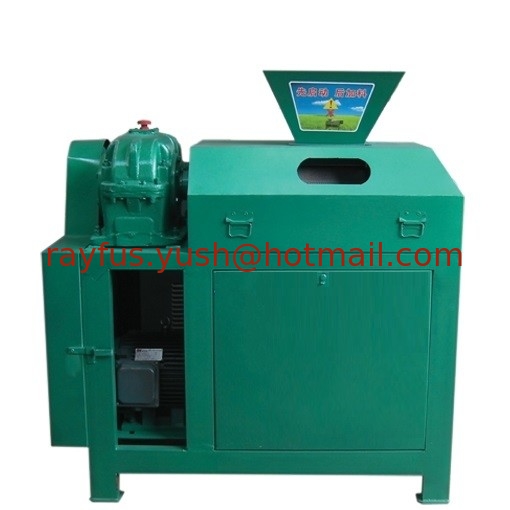

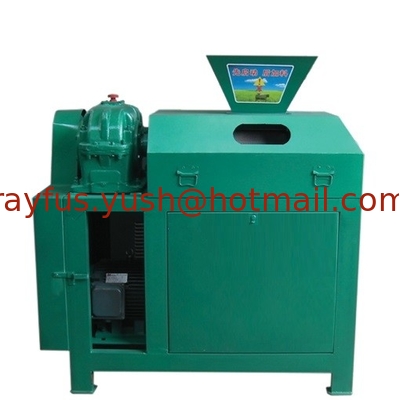

Roller Pressing Granulator
☆ At normal temperature, could press powder material to granule, suitable for Ammonium Bicarbonate (NH4HCO3), Urea (CO(NH2)2), Ammonium Chloride (NH4Cl), Diammonium Phosphate ((NH4)2HPO4), Potassium Chloride (KCl) etc. single-element fertilizer or multi-elements fertilizer.
☆ Granule high intensity, no need of drying, greatly reduce production cost.

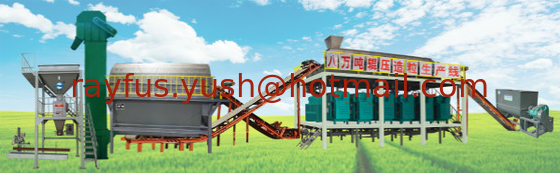

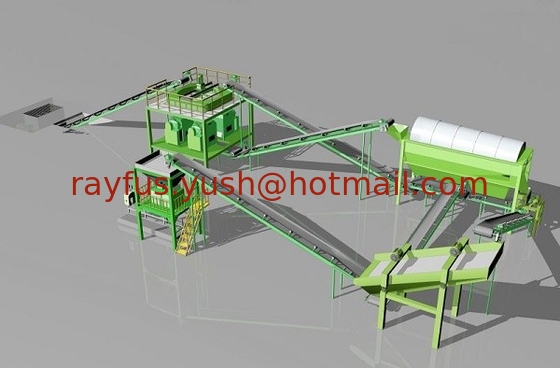

☆ To satisfy customer requests, we design and manufacture complete set machines as fertilizer production line (Blender, Grinder, Elevator, Conveyor, Screener, Weigher, etc.), different production capacity according to customer requests.

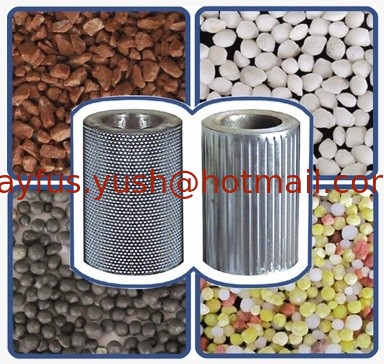

☆ Mould roller adopt special meterial, corrosion resistance, wear resistance, long use life.
☆ Adopt cycloid gear motor to drive directly, running stable, low noise.
| Model | GY-220 | GY-250 | GY-300 |
| Capacity | 1.0~1.5ton/h | 1.5~2.0ton/h | 2.0~3.0ton/h |
| Granule Diameter | 3~8mm | 3~8mm | 3~8mm |
| Material Moisture | 1~3% | 1~3% | 1~3% |
| Granule Intensity | ≥11~12N | ≥10~11N | ≥10~11N |
| Motor Power | 15kw | 18.5kw | 22kw |
| Overall Dimension | 1300*700*1000mm | 1560*800*1500mm | 2100*800*1600mm |
| Remarks: To make machines according to customer request available. | |||
Contact Details
Yush Carton Machine Factory
Contact Person: Mr. Rayfus
Tel: +86-156-9019-6799
Fax: +86-318-573-6656
Other Products
-
Animal Feed Pellet Making Machine, for Animal Fodder Making, Forage Pellet
-
High-pressure Ball Pressing Machine, Roll Pressing Granulator Machine
-
Compound Fertilizer Pellet Production Line
-

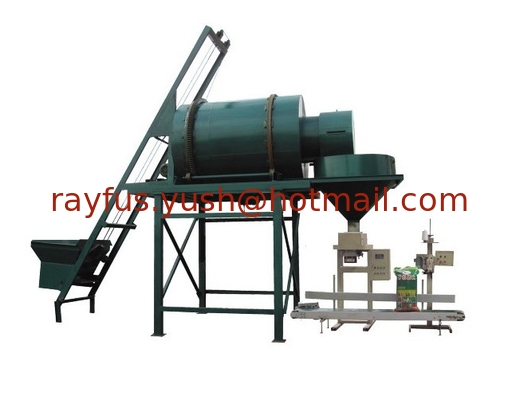

BB Fertilizer Production Line, Bulk Blending Fertilizer Mixer
-

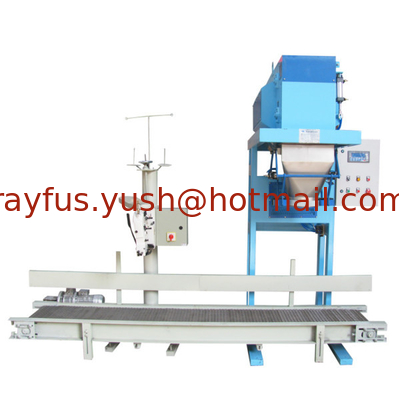

Weigher Packager, for Powder, Granule or Compound Material
-
