NC Computer-control Rotary Cut-off Machine, Single Layer or Double Layer
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description

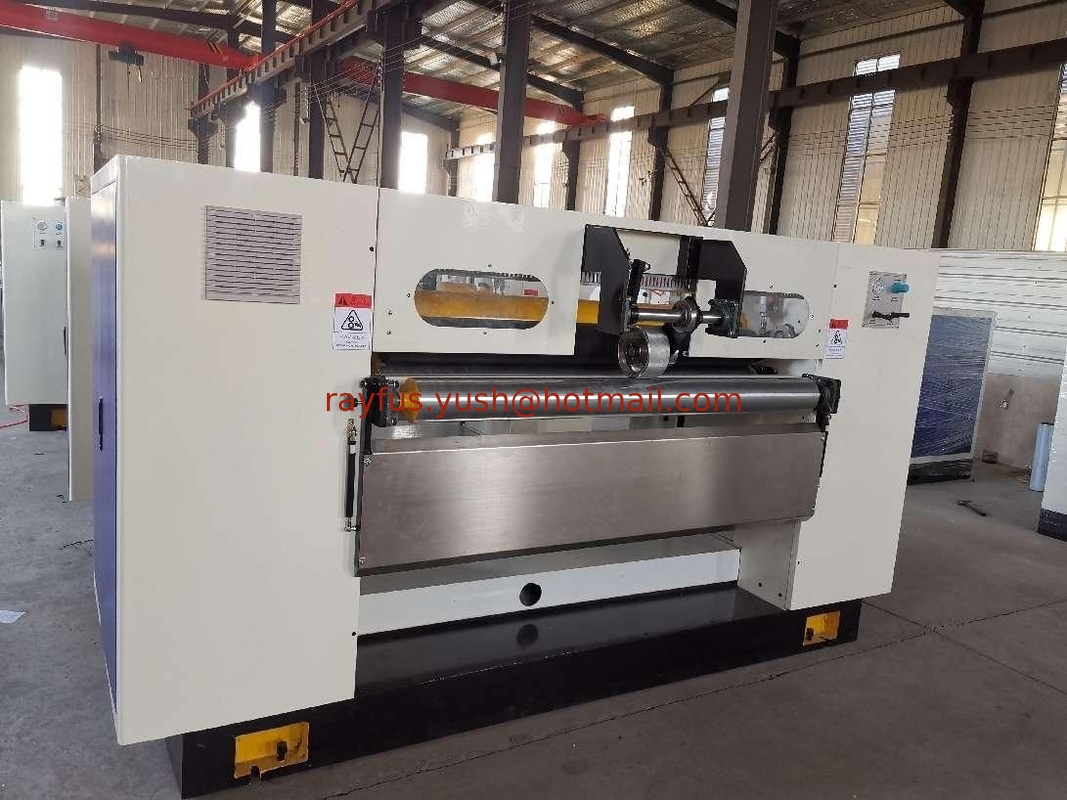

NC Computer-control Rotary Cut-off
1) NC Computer-control Rotary Cut-off computer controlled AC servo controller, drive inverter motor work to achieve high-precision cutting.
2) Orders with real-time input, edit, modify, save, real-time monitoring (paper speed, cut length, remaining length, production process, etc. parameters), change order (serial change order, mandatory change order, priority input), production statistics, remaining orders, warning etc. functions.
3) Instantaneous and numerical control cutting length, can amend, add, and cancel at any time.
4) Knife roller transmit gears adopt high-precision grinded gear, spray lubrication.
|
Knives |
Helical knife |
|
Max Effective Width |
1100~2200mm |
|
Cutting Length Range |
500~9999mm |
|
Cutting Precision |
±1.0mm |
|
Design Speed |
120m/min |
